MECHANICAL LOCK PANELS
THE HIGHEST STANDARD IN STANDING SEAM PERFORMANCE
Mountain West Metals' Mechanical Lock panels deliver unmatched wind uplift resistance, water infiltration protection, and structural integrity through a field-seamed double-lock profile. Engineered for commercial, architectural, and demanding residential applications where performance cannot be compromised.
PRODUCT SPECIFICATIONS
MECHANICAL LOCK PANEL SPECIFICATIONS
Our Mechanical Lock standing seam panels are manufactured to exacting standards using our on-site mobile roll-forming technology, ensuring every panel is cut to the exact length required for your project.
• Panel Widths: 12", 16", 18" coverage widths available
• Material Gauges: 24 gauge and 26 gauge Galvalume steel; 0.032" and 0.040" aluminum
• Seam Height: 1.5" standing seam

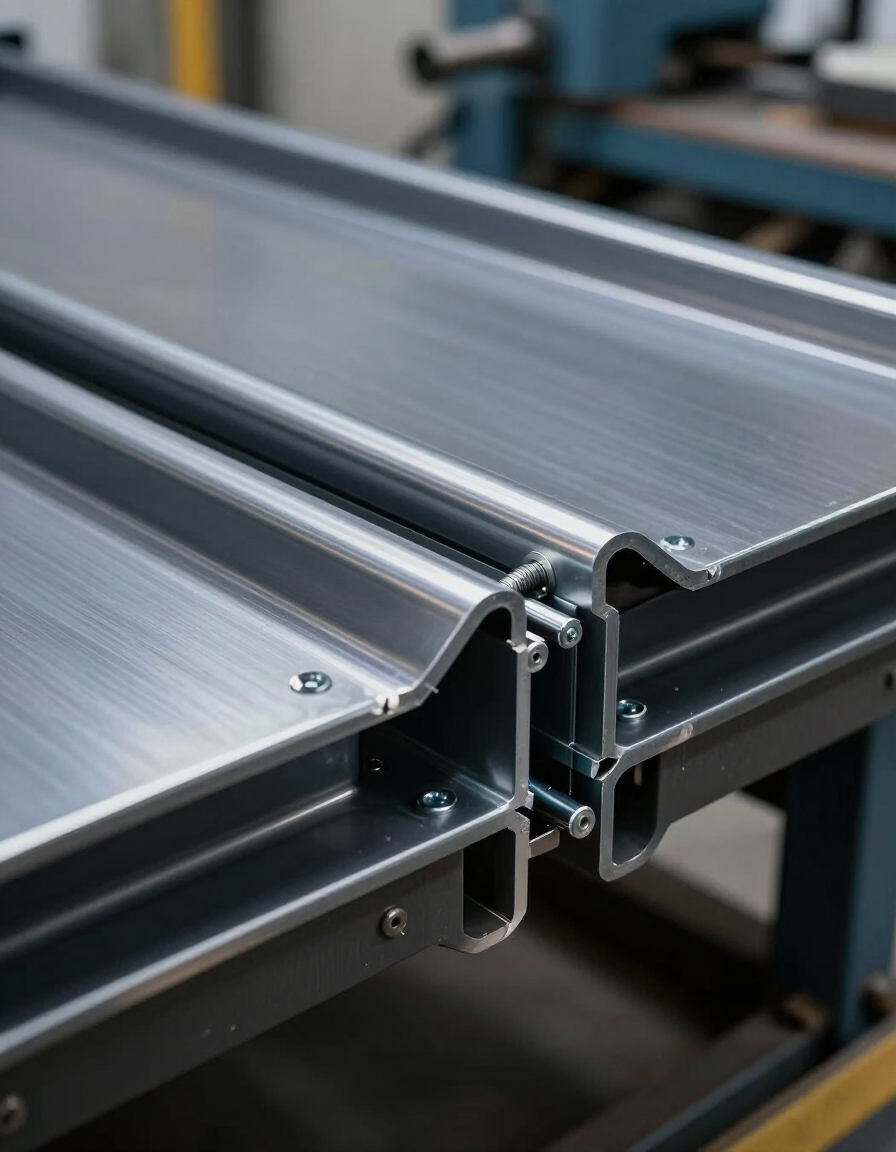

• Seam Profile: Double-lock mechanical seam (field-seamed with a mechanical seamer tool)
• Panel Length: Custom cut-to-length on site -- no factory length limitations
• Minimum Slope: 1:12 (can perform on low-slope applications)
• Available Finishes: Kynar 500® PVDF coatings, Silicone-Modified Polyester (SMP), bare Galvalume
• Color Options: Full palette of standard and custom colors available
• Compatible Substrates: Solid sheathing, open framing (with proper clip spacing)
• Thermal Movement: Floating clip system accommodates thermal expansion and contraction

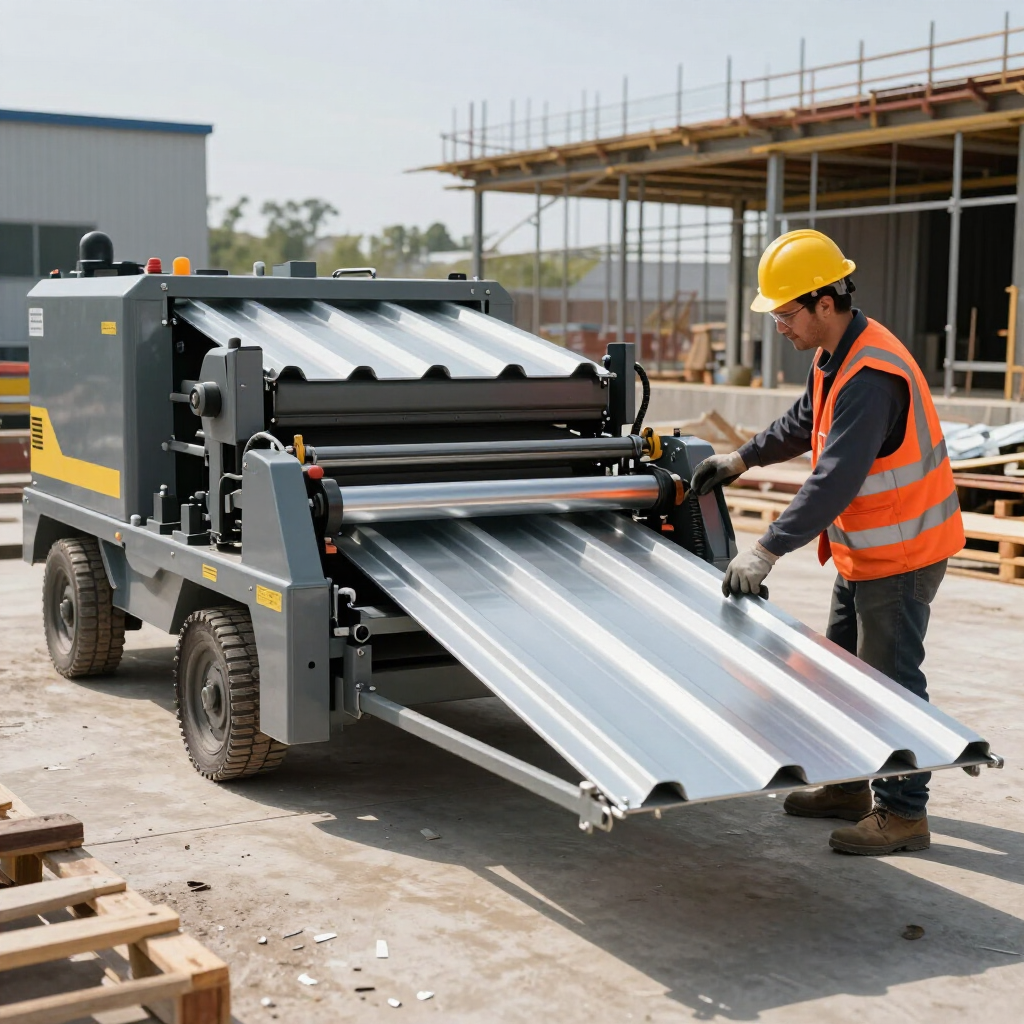

All panels manufactured on-site using Mountain West Metals' mobile roll-forming technology. Custom lengths eliminate field cuts, reduce waste, and protect panel finishes from handling damage.
PERFORMANCE ADVANTAGE
ENGINEERED FOR EXTREME CONDITIONS

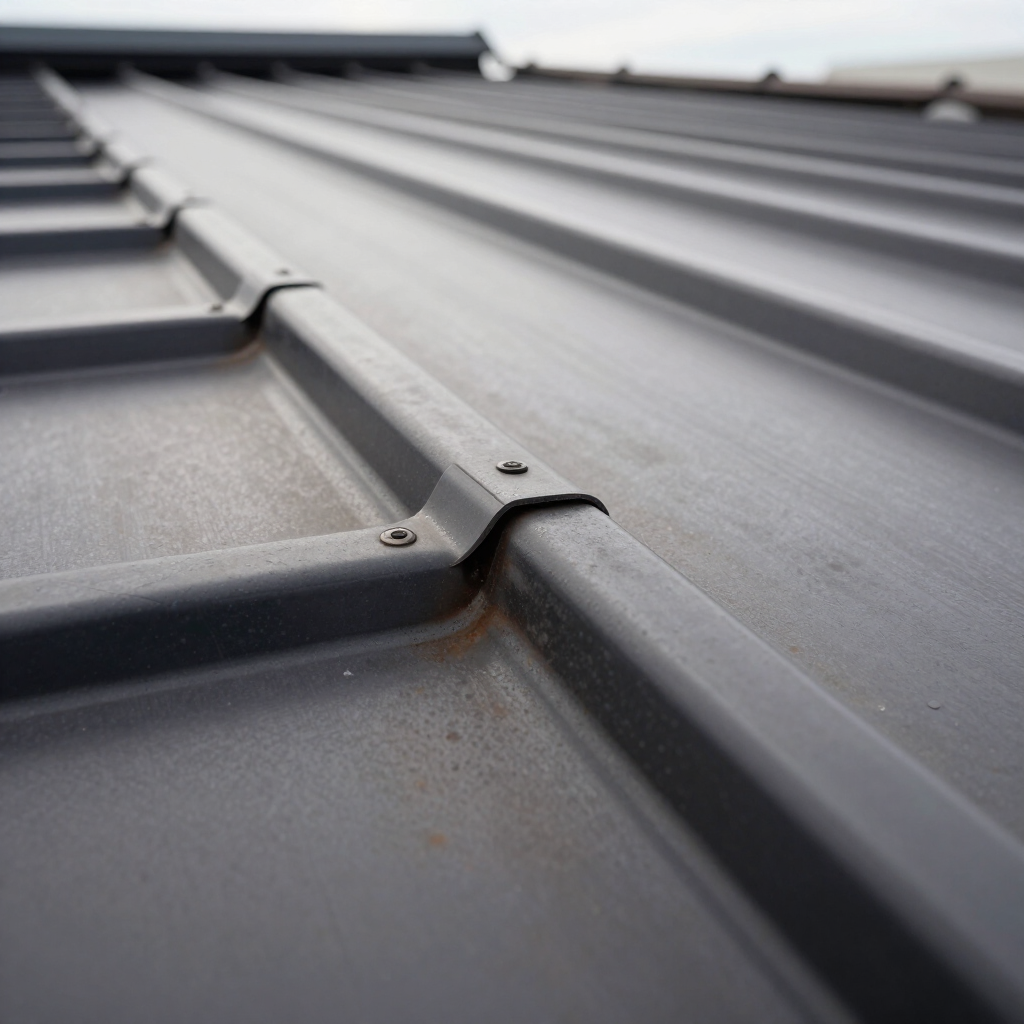

The double-lock mechanical seam is the most structurally secure standing seam profile available. Unlike snap-together systems, Mechanical Lock panels are field-seamed using a mechanical seaming tool that physically folds and locks the panel seams together -- creating a continuous, watertight, structurally integral roof plane.
WIND UPLIFT RESISTANCE
The mechanically seamed double-lock profile achieves significantly higher wind uplift ratings than snap lock systems. Ideal for high-wind zones, commercial rooftops, and coastal or mountain installations where dynamic wind loads are a design consideration.
WATER INFILTRATION PROTECTION
The field-seamed double-lock creates a fully continuous seam with no reliance on friction or snap-fit tolerances. Combined with the floating clip system and 1.5" seam height, Mechanical Lock panels provide superior water infiltration resistance, even on low-slope roofs.
STRUCTURAL INTEGRITY
The mechanically seamed profile creates a structurally rigid panel plane that distributes load across the entire roof system. The floating clip system independently accommodates thermal expansion and contraction without stressing the seam, preserving long-term watertight performance.
IDEAL APPLICATIONS
WHERE MECHANICAL LOCK OUTPERFORMS
Mechanical Lock panels are the preferred choice for projects where snap-together systems are insufficient. When slope, wind exposure, building code requirements, or architectural specifications demand the highest level of seam integrity, Mechanical Lock is the professional standard.

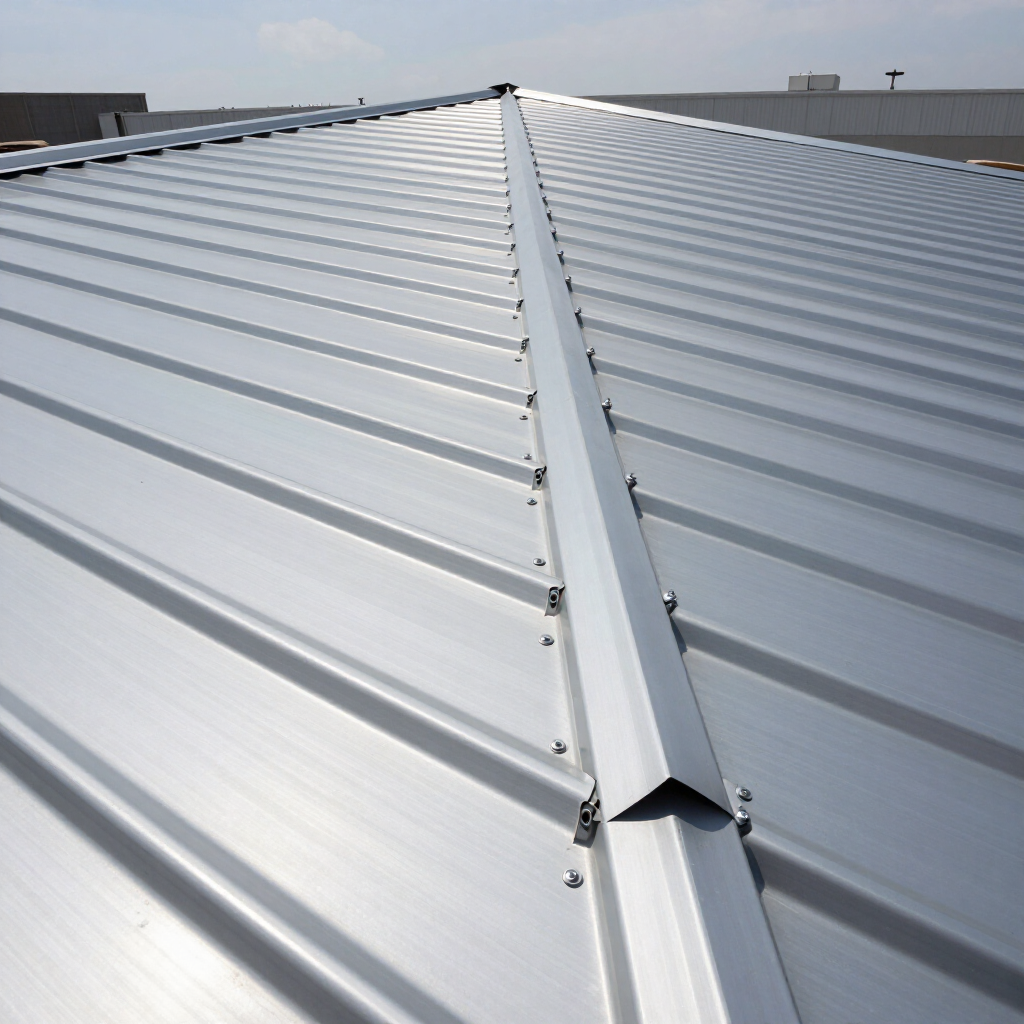

• Low-Slope Roofs (as low as 1:12 pitch) -- where water sits longer and infiltration risk is highest
• High-Wind Zones -- mountain, coastal, and exposed commercial sites with elevated wind uplift requirements

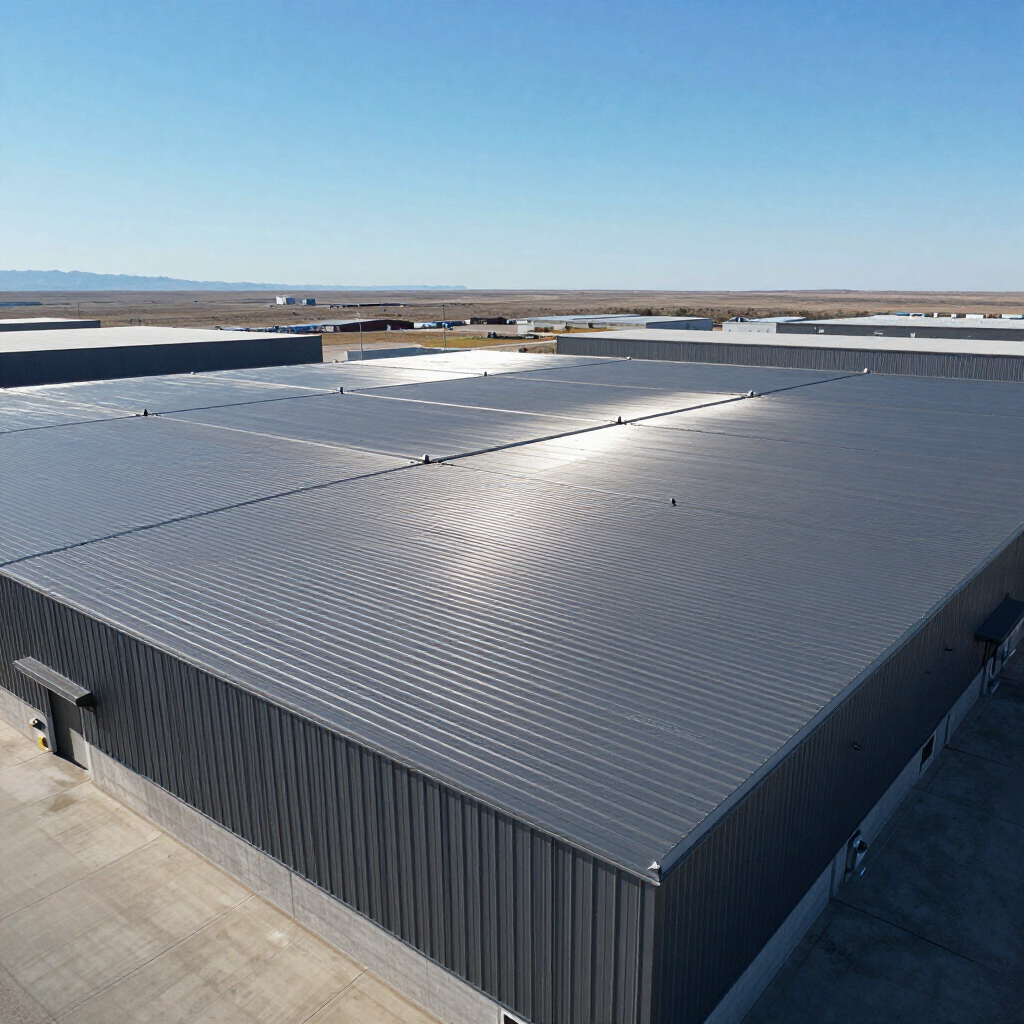

• Commercial & Industrial Buildings -- warehouses, distribution centers, manufacturing facilities, office buildings

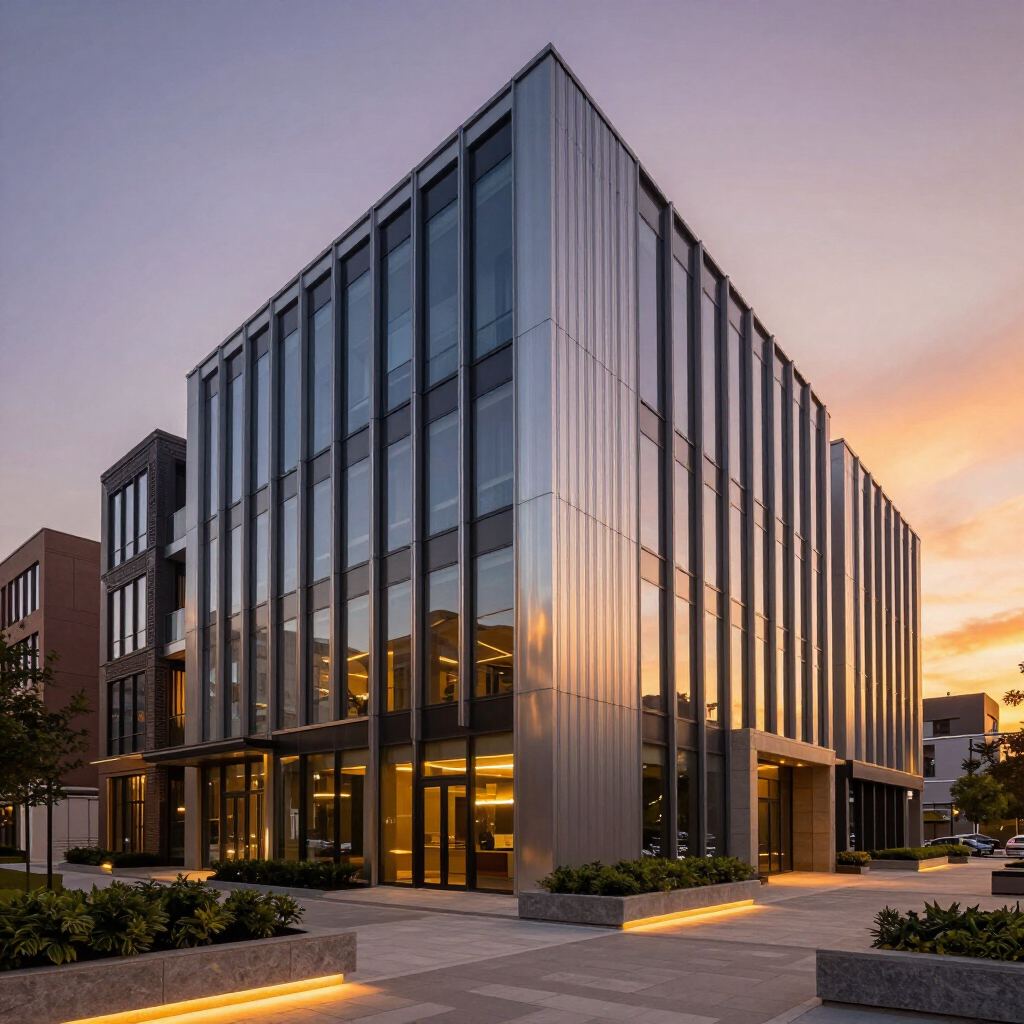

• Architectural & Design-Forward Projects -- where long uninterrupted panel runs and clean seam lines are specified

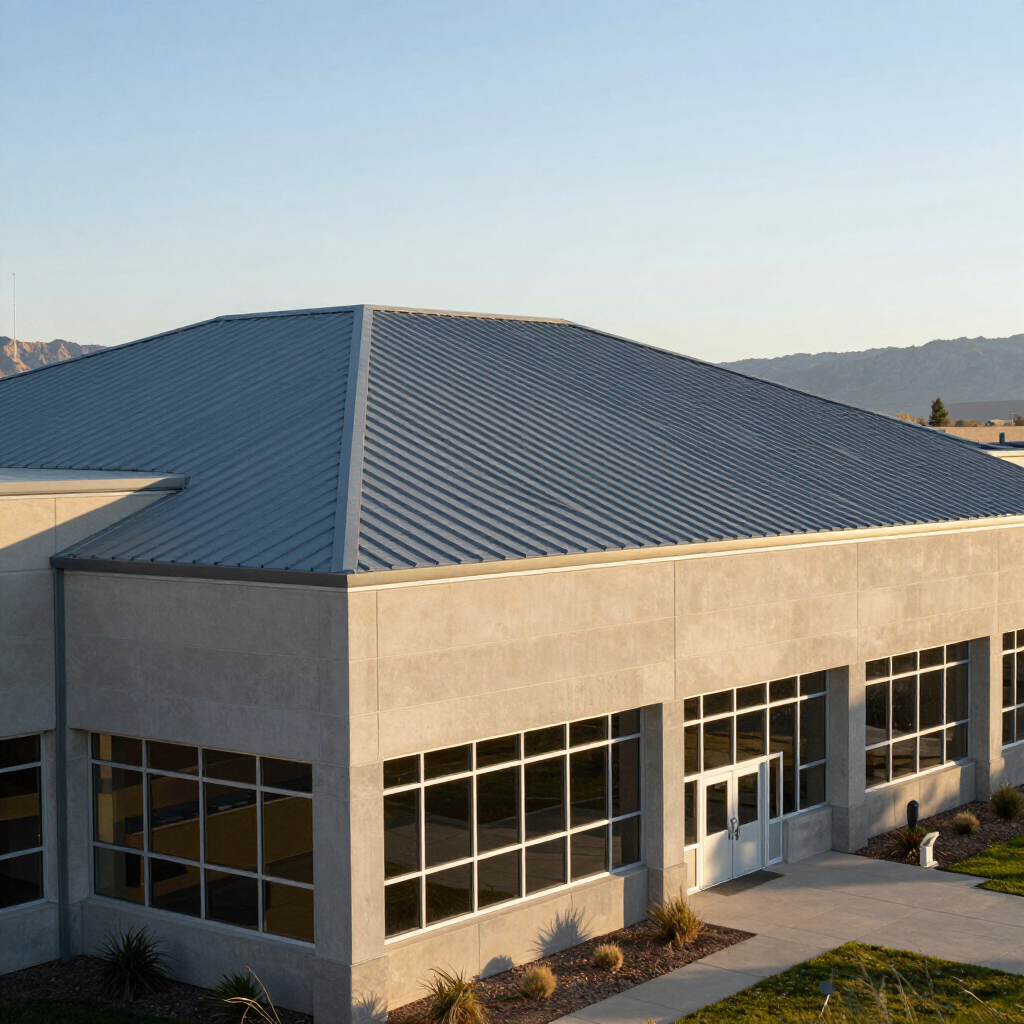

• Institutional Buildings -- schools, government buildings, healthcare facilities requiring long-term performance warranties
• Re-Roofing Over Existing Structures -- where added structural integrity from the mechanical seam compensates for substrate variation
Not sure whether Mechanical Lock or Snap Lock is the right system for your project? Our team can help you evaluate slope, wind exposure, code requirements, and budget to specify the correct panel system. Contact us for a consultation.
FEATURED PROJECTS
MECHANICAL LOCK IN THE FIELD

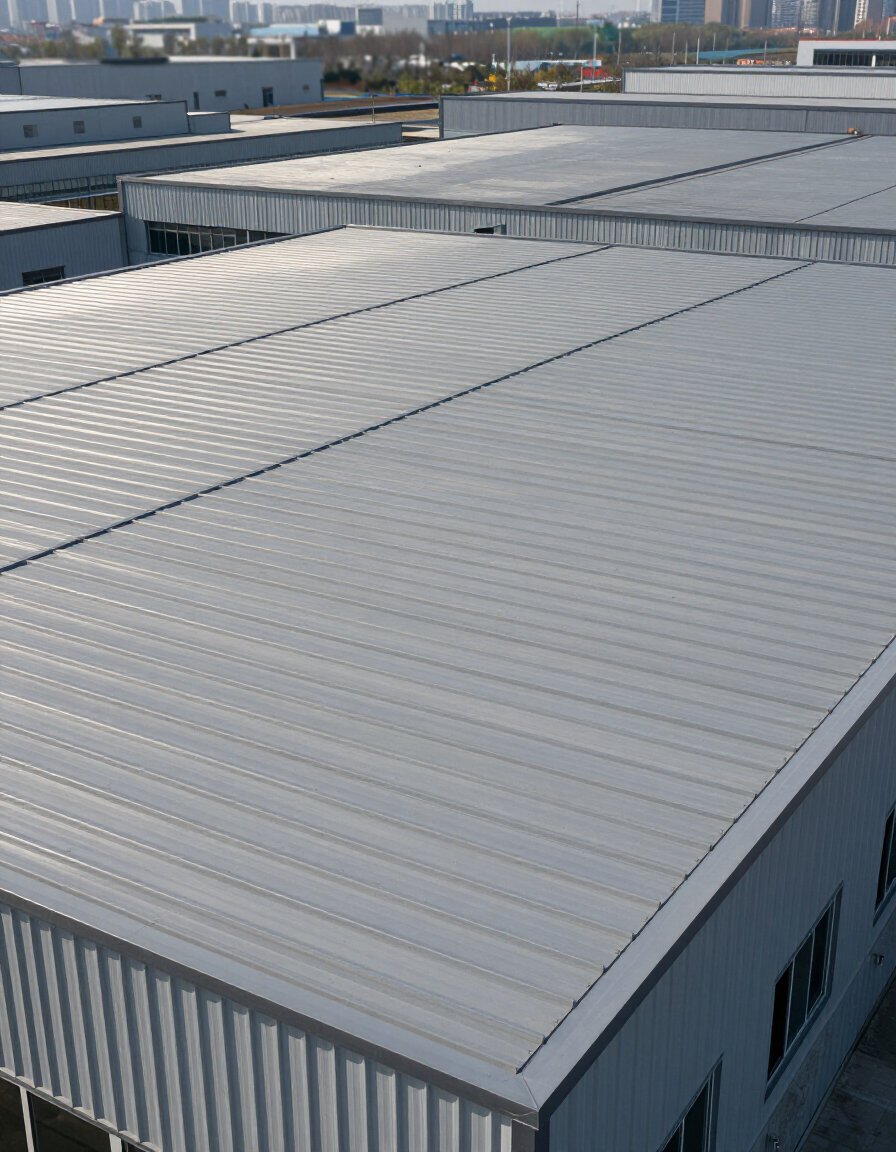

Explore completed Mechanical Lock installations across commercial, architectural, and institutional projects throughout Utah. Every panel manufactured on-site to exact project specifications.
GET STARTED
READY TO SPECIFY MECHANICAL LOCK PANELS?
Mountain West Metals' team is ready to help you specify the right mechanical lock panel system for your project. We'll bring our mobile roll-forming equipment to your job site and manufacture custom-length panels with zero factory lead time.
