Snap Lock Panels

Speed. Precision. Snap Lock Standing Seam.

Mountain West Metals' Snap Lock standing seam panels deliver a fast, field-proven installation system engineered for residential, commercial, and architectural roofing projects across Utah. No seaming machine required — just snap, lock, and done.

Product Specifications

Snap Lock Panel Specs & Finishes

Every Snap Lock panel Mountain West Metals produces is roll-formed to exact custom lengths on-site — no factory cut-offs, no field trimming waste. Specify your dimensions; we manufacture to them.

Specification Detail
Panel Width 12", 16", 18" (nominal coverage)
Material Galvalume steel, aluminum
Available Gauges 24 ga, 26 ga steel; 0.032", 0.040" aluminum
Seam Height 1.5" snap lock seam
Seam Type Snap Lock (no seaming machine required)
Coatings Kynar 500® PVDF, SMP, Galvalume AZ55
Color Options 40+ standard colors; custom match available
Panel Lengths Custom-cut on-site via mobile roll-former
Compatible Substrates Solid sheathing, open framing, purlins
Minimum Roof Pitch 3:12

All specifications subject to change. Contact us to confirm availability for your project.

Snap Lock standing seam panel seam profile detail

Installation Advantage

No Seaming Machine. No Delays.

Snap Lock standing seam is the fastest-installing standing seam panel system on the market. The snap-together seam locks mechanically without a separate seaming tool — reducing crew requirements, cutting installation time, and lowering your labor cost per square.

Tool-Free Seaming

The snap lock seam engages under foot traffic and panel weight — no electric seamer or hand seamer required. Any trained installer can run Snap Lock from day one.

Faster Crew Cycles

Reduced tooling means fewer crew dependencies. Snap Lock installs 20-30% faster than mechanically seamed systems on comparable roof planes, keeping your schedule tight.

Fewer Touch Points, Less Damage

Panels manufactured on-site via mobile roll-former are loaded directly onto the roof — no factory bundling, no long-haul transport damage, no field re-cutting.

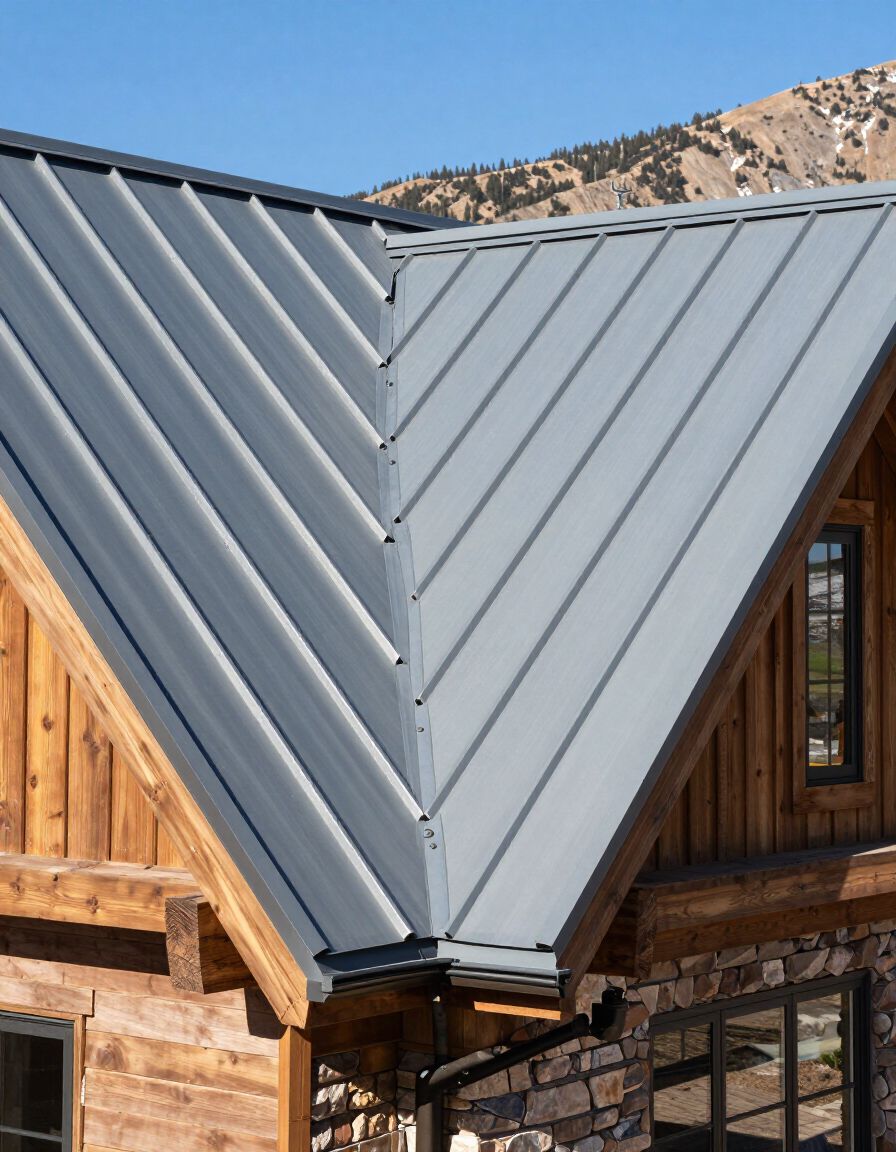

Completed Snap Lock standing seam metal roof on a residential home

Ideal Applications

Where Snap Lock Performs Best

Snap Lock standing seam is purpose-built for projects where installation speed and design flexibility matter — residential reroof and new construction, light commercial buildings, agricultural structures, and architecturally detailed facades.

Roof Pitch: 3:12 minimum; performs well on pitches up to 12:12 and steeper
Residential New Construction: Single-family homes, custom builds, high-end reroof
Light Commercial: Office buildings, retail, warehouses under 50,000 sq ft
Agricultural: Barns, equipment storage, metal buildings with open framing
Architectural Accents: Feature bays, dormers, shed roofs, covered walkways
Panel Widths: 12", 16", and 18" options to match aesthetic and structural requirements

Not sure if Snap Lock is the right system for your project? Our team can help you compare Snap Lock against Mechanical Lock to match the panel type to your spec.

Project Gallery

Snap Lock in the Field

Real projects. Real Utah job sites. Every roof below was manufactured and installed using Mountain West Metals' Snap Lock standing seam panels and mobile roll-forming technology.

Close-up of Snap Lock standing seam panel seam profile detail

Seam Profile Detail
Aerial view of completed residential Snap Lock metal roof

Aerial Residential View
Mobile roll-former on residential driveway manufacturing Snap Lock panels on site

On-Site Roll Forming
Completed light commercial building with Snap Lock standing seam roof in charcoal finish

Commercial Charcoal Finish
Residential home with Snap Lock roof in bronze/copper tone

Residential Bronze Finish
Snap Lock panel transition at ridge cap with clean trim detail

Ridge Cap Trim Detail
Contractor crew installing Snap Lock panels on a steep residential roof

Installation in Progress
Utah mountain property with completed Snap Lock standing seam roof

Utah Mountain Property
View more

Get Started

Ready to Specify Snap Lock Panels?

Mountain West Metals manufactures Snap Lock standing seam panels to your exact custom lengths — on-site, on demand. Request a quote today and our team will respond with panel options, material specifications, and project pricing for your Utah roofing project.
